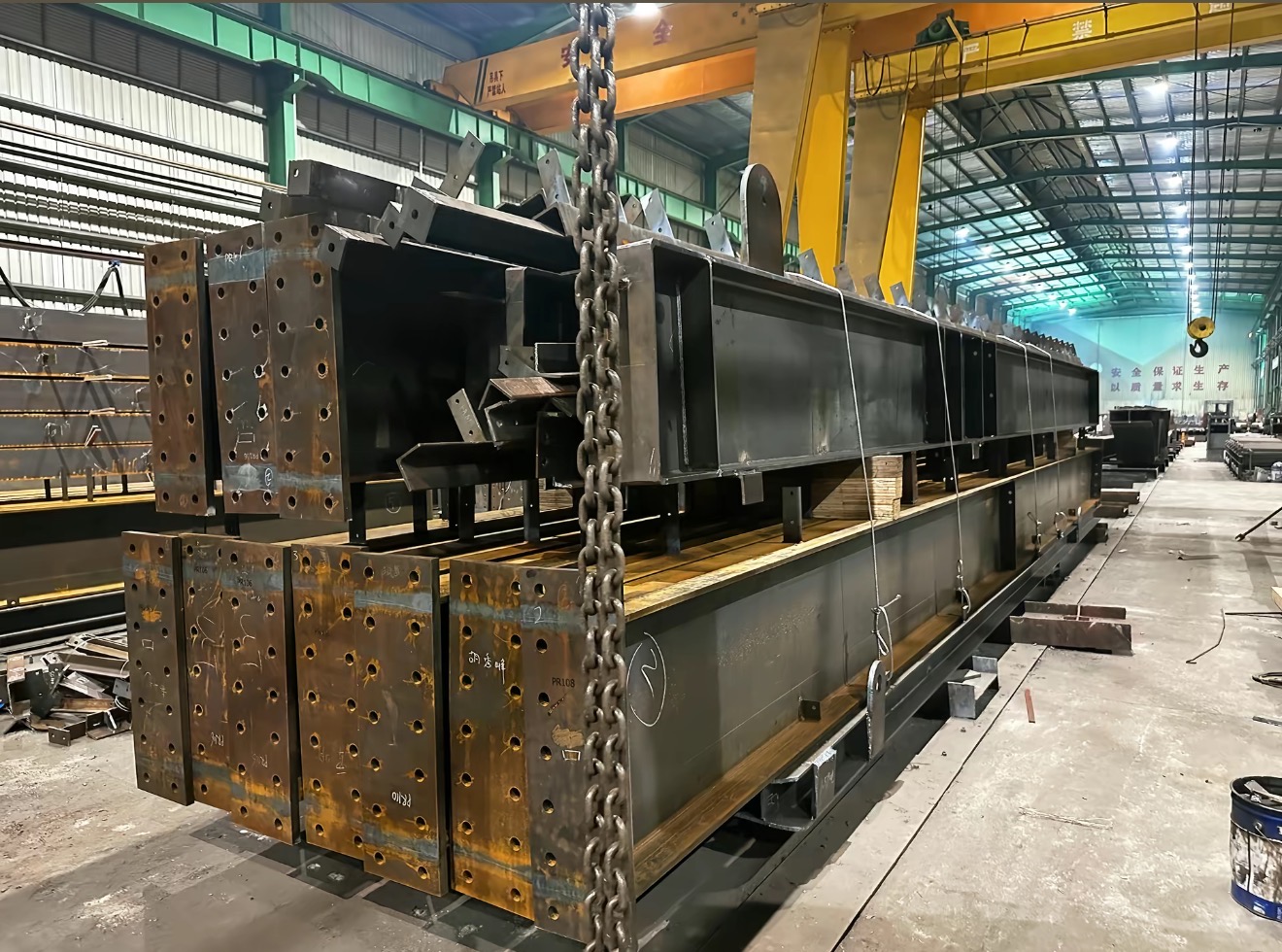

Heavy steel structure members prepared from approved drawings for Saudi Arabia project delivery
Drawing-based heavy steel structure fabrication starts with clear member information, fabrication scope, inspection checkpoints and batch delivery planning.

Why Jeddah buyers ask for drawing-based steel structure supply

Jeddah industrial and warehouse projects often move quickly from budgeting to fabrication review. When the supplier works from current drawings instead of approximate tonnage alone, buyers get a clearer quotation basis for structural members, coating scope, document requirements and delivery planning.

This matters for EPC contractors, general contractors and industrial developers because changes in connection details, steel grade, surface treatment or phased delivery can affect both price and fabrication schedule.

What drawings and project data should be sent first

The first RFQ should include structural drawings, steel tonnage if available, project type, span, height, coating notes, bolt and welding scope, destination route, and the expected delivery sequence. If the latest drawings are still under revision, the buyer should mark which sheets are preliminary.

That lets the supplier separate confirmed fabrication scope from items that still need clarification. For Saudi Arabia projects above 500 tons, this usually leads to faster technical review and fewer quotation corrections.

How HF Steel supports fabrication from approved drawings

HF Steel can fabricate columns, beams, rafters, bracing, platforms, roof support members and custom structural steel components according to the approved drawing package. During production, the agreed project scope can also include fabrication summaries, dimensional records, welding records and packing information.

These records help the buyer connect engineering review with factory progress. Instead of receiving only finished steel, the project team receives a more usable document trail for inspection, shipment coordination and site receiving.

Records and delivery information that support Jeddah projects

For export delivery, member marks, bundle references, loading photos and packing lists help the receiving team identify which members belong to which shipment batch. This is especially useful for warehouse steel structures, factory buildings and industrial expansion packages with staged delivery.

HF Steel does not replace local importer or certification procedures, but it can support the fabrication side with practical records and packing data so the Jeddah project team has clearer files for internal review.

Best-fit Jeddah project types

  • Industrial steel buildings above 500 tons that require quotation from current drawings.
  • Warehouse steel structures needing member marks, packing lists and phased delivery planning.
  • EPC steel packages that need fabrication scope confirmation before production release.
  • Factory and logistics center projects requiring inspection records and delivery coordination.
